- Place of Origin: Shandong Zhangqiu
- Brand Name: zeyu
- Model Number: QTZ80 (TC6010)
- Weight: 32000.000 kg
Shandong Zeyu Steel Products Co. Ltd mainly produces tower crane and construction hoist, products are divided into: QTZ40, QTZ45, QTZ50, QTZ60, QTZ63, QTZ80, QTZ100, QTZ125, QTZ160, SC200/200 construction elevator ten series of more than and 20 models. Company to "science and technology" concept and actively introduce advanced technology at home and abroad, the broad strokes of high level talents in science and technology, using the latest production technology and strict detection means, the product structure is more reasonable, more reliable performance, Ze Yu Jian machine famous China, the majority of users at home and abroad by the Qing mei.

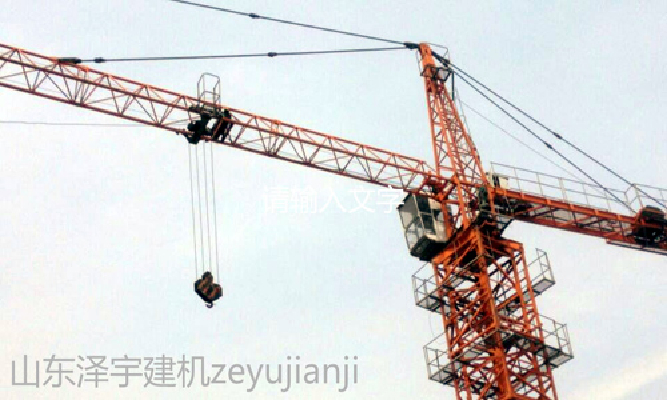

FM6010 tower crane is the Shandong Zeyu Steel Products Co., Ltd. to make full use of group technology, combination of design technology and finite element analysis technology, with "tower crane design platform" as the tool to design the latest domestic lifting transport machinery.
This machine is a horizontal arm rack, trolley amplitude, on the rotary hydraulic lifting crane. The maximum lifting weight is 6T; the maximum range of 60 meters,the rated lifting torque of 800kN·m,the maximum range of 50 meters,the rated lifting torque of 920kN·m,the maximum range of 45 meters,the rated lifting torque of 1000kN·m.
1) the performance parameters and technical indicators have reached the leading domestic, international advanced level,the maximum range of 60 meters,increasing the working space of the tower crane.
2) The whole shape is an international fashion, beautiful and generous.
3)The way to work more, use rangely. There is a fixed base, the outer wall attached to the two working methods, suitable for all kinds of different construction object; independent lifting height of 40 meters, 151 meters height attachment.
4)Working speed, good speed performance, smooth operation, high efficiency 86m/min。Lifting bodies using multi-speed motor winding and single-ratio reduction gear, to achieve high speed and heavy load, the maximum speed of up to 86m/min.Trolley mechanism tractors in the horizontal arm luffing, with good performance in the installation.Slewing mechanism with winding motor and planetary gear reducer, hydraulic coupler configuration, carrying capacity, stable starting, reliable operation and function with wind in place.
5)Boom rigid double rod suspension, good rigidity, light weight, small section, small wind resistance, uniform stress, beautiful appearance.
6)All kinds of safety devices, can ensure safe and reliable work.
7)Independent side of the driver's room, good vision, to create a good working environment for the operator.
8)Simple to use and easy maintenance.
The machine’s weight (without counterweight、 base and attachment means)is 35.268t, the total installed capacity of 41.9kW, widely used in high-rise hotels, residential, industrial construction and other large construction projects, is the construction of the majority of small and medium-sized construction machinery enterprise construction machinery.
- Place of Origin: Shandong Zhangqiu
- Brand Name: zeyu
- Model Number: QTZ80 (TC6010)
- Weight: 32000.000 kg
表一 技术性能表
Technical performance table
项 目 project | 单位 units | 2倍率 2 ratio | 4倍率 4 ratio | |||||||
最大幅度起重量 The biggest weight | t | 3 | 6 | |||||||
最大工作幅度 maximum Rmin-Rmax | m | 60 | 50 | 45 | ||||||
Rated lifting torque | KN.m | 800 | 920 | 1000 | ||||||
最大起重量 maximum lifting load | t | 3 | 6 | |||||||
最小工作幅度 Minimum Operating margin | m | 3 | ||||||||
最大幅度起重量 The biggest weight | a=2 | t | 1.0 | 1.308 | 1.65 | |||||
a=4 | 1.0 | 1.293 | 1.639 | |||||||
最大起重量幅度 Maximum lifting weight range | a=2 | m | 24.63 | 26.33 | 28.01 | |||||
a=4 | 13.56 | 14.47 | 15.37 | |||||||
基本臂35m处最大起重量 The maximum weight at basic arm 35m | t | 1.943 | 2.114 | 2.286 | ||||||
起升高度lifting altitude | 独立式 stand alone type | m | 41 | |||||||
附着式Adhesion-style | 150 | 75 | ||||||||
起升速度 Lifting speed | m/min | 80/40 | 40/20 | |||||||
最低稳定下降速度 Steady decline lowest speed | m/min | <9 | ||||||||
回转速度 rotating speed | m/min | 0.64 | ||||||||
变幅速度 radius changing speed | m/min | 44/22 | ||||||||
顶升速度 Telescoping speed | m/min | 0.4 | ||||||||
整机外型尺寸 outline dimension of full set | 底 架 The bottom frame | m | 2.315×2.315 | |||||||
整机高度(独立式) height of the cranes(stand alone type) | 50.145 | |||||||||
吊臂端头至回转中心 Crane jib end to the rotary centers | 57.18 | |||||||||
平衡臂尾部至回转中心 Balance arm tail to the rotary centers | 12.39 | |||||||||
整机 自重whole machine weight | 结构重(独立式) Structure of heavy(stand alone type) | t | 35.268 | |||||||
平衡重 counterweight | 幅度 m | 60 | 50 | |||||||
t | 16.8 | 14.6 | ||||||||
电机总容量 Total power consumption
| kW | 41.9 | ||||||||
允许工作温度 allowable working temperature | ℃ | -20~ 40 | ||||||||
工作状态基本风压 Basic wind pressure working state | Pa | 250 | ||||||||
非工作状态基本风压 Non-work state basic wind pressure | Pa | 1100 | ||||||||
供电参数 power supply parameter | 50Hz | ~380V±10% |
