- Place of Origin: Shandong Zhangqiu
- Brand Name: zeyu
- Model Number: 001
- Weight: 12000.000 kg
Construction lift (also known as external lift, referred to lift) widely used in personnel and material vertical lift transport. In industrial or civil buildings, large bridges, shafts, are indispensable good transport equipment, as permanent or semi permanent can also be used for warehouse, tower and other occasions. The product is stability and security compared to other lifting mechanism, No separate machine room and hoistway ,easy disassembly, handling flexibility, etc. It has the obvious effect, especially in reducing the labor intensity of construction personnel, speeding up the construction schedule, improving work efficiency.

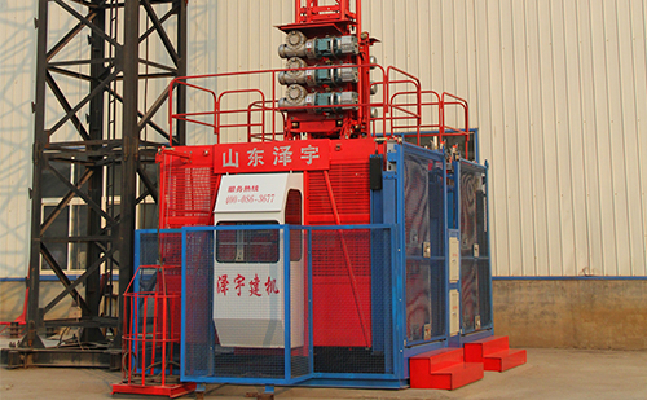

SC200 / 200 construction elevator is new designed products. The machine has reasonable design, novel structure, smooth operation, safety device is complete and reliable, convenient installation and maintenance, basically has the following characteristics:
1、The transmission mechanism adopts three motor drive form, which makes the rack and pinion force uniform, safe and stable.
2、To ensure the safe operation of the lift, the circuit is set up with overload, speed limit and other safety switch, when the above situation in the operation occurs, the elevator will automatically avoid accidents. Hoisting cage on each is also have limited position switch, when any of an unusual turn, the cage cannot start or stop running immediately.
3、Each cage is equipped with anti falling safety device, can effectively prevent cage from falling, to ensure safe and reliable operation of the elevator.
4、Lift control system is simple, easy to operate and maintenance, and reliable. When the normal operation of the elevator, it can be used in the cage with a handle or button to control the elevator operation, in any need to stop at any time, the upper and lower terminal limit switch control automatic stop, if the upper and lower limit switches are not due to failure, the limit switch can be set up in time to cut off the power supply.
5、Steel structure design has passed the scientific and rigorous calculation, to achieve the requirements of reasonable structure, reliable strength and light weight.
6、The lift can be used in installing or removing the guide rails on the hanger. The rest of the parts can be easily installed and disassembled, and the components are easy to be replaced.
If there is any need, please write to us.
- Place of Origin: Shandong Zhangqiu
- Brand Name: zeyu
- Model Number: 001
- Weight: 12000.000 kg
2、技术性能参数
Technical performance parameter
型 号 model 性 能 参 数 Performance parameters | SC200/200 | |
额定载重量(Kg) | 2000/2000 | |
额定乘员数(人) Rated crew number | 2×20 | |
额定起升速度(m/min) Rated lifting speed | 34 | |
最大起升高度(m) Maximum lifting height | 150 | |
导轨架尺寸(m) The size of the guide rail frame | 0.65×0.65×1.508 | |
吊笼尺寸(m) | 3X1.5X2.7 | |
电动机 Motor | 型 号 model | YZZ132M-4 |
功率(KW)
| 11×3×2 | |
减速机 Reducer | 中心距(mm) Center distance | 125 |
传动比 transmission ratio | 1:16 | |
安全器 Safety device | 形 式 Form | 渐进式 progressive |
动作速度m/s Speed of action | 1.0 | |
制动力矩(N.m) | 4000 |
